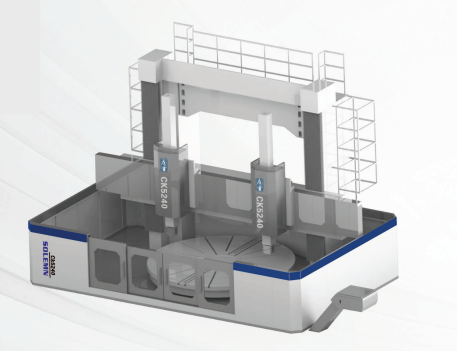

Double-column CNC vertical lathe

1. Suitable for mechanical processing across various industries, applicable to roughing and finishing of internal/external cylindrical surfaces, conical surfaces, end faces, grooves, arcs, various curved surfaces, and threads.

2. The main drive system of the machine tool employs either AC or DC motor drives. The AC drive utilizes a four-speed spindle speed regulation mechanism, while the DC drive employs a two-speed speed regulation mechanism to achieve the required rotational speed range for the worktable.

3. The worktable's spindle employs high-precision adjustable radial clearance double-row short cylindrical roller bearings for centering, while the worktable features constant-current static pressure guides, ensuring high rotational accuracy, substantial load capacity, and minimal thermal deformation.

4. Depending on user requirements, the machine tool may be equipped with a constant-temperature cooling system or an independent hydraulic station system to ensure machining accuracy and stability of all technical parameters.

5. The guide surfaces of columns, beams, sliding pillows, etc., undergo quenching, grinding, and manual precision machining, ensuring high accuracy and superior quality.

6. The machine tool's feed system employs a servo motor and ball screw transmission, with the crossbeam equipped with a sealed protective cover, enhancing both safety and user comfort.

7. The CNC system can be equipped with either imported or domestically manufactured configurations based on user requirements. 8. Available configurations include: electric tool holder, semi-enclosed housing, and chip cooling system.
