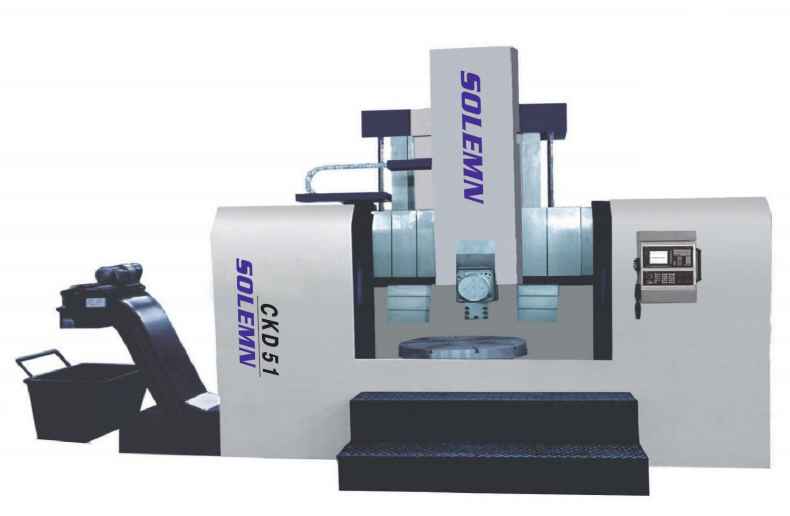

CKD51 series double lead screw lifting CNC vertical lathe

Machine features:

1, CKD51 series double screw lifting CNC vertical lathe, using double screw lifting beam. Column, bed, beam, base special design, so that the machine has high rigidity, high stability, high precision, to achieve strong cutting function. Suitable for carbide and ceramic cutting tools, black metal, non-ferrous metal and some non-metallic parts of the internal and external cylindrical surface, cone, grooving, thread and rotary surface, etc.

2, the column is a thermal symmetric structure, through the computer finite element calculation, take effective vibration isolation measures, with high stiffness, high seismic ability.

3, the guide rail surface adopts high-frequency quenching, hardness HRC40-45 degrees.

4, CKD5112, CKD5116 two models, the table adopts rolling bearing guide, the main shaft adopts high-precision taper hole double row cylindrical roller bearing, the main shaft axial clearance adopts thrust ball bearing adjustment, greatly improving the carrying capacity, faster running speed, quality improvement of processing accuracy, gearbox is also redesigned, increase the gear module, widen the tooth surface, The gear contact degree increases, the corresponding drive shaft and bearing are also improved, with large bearing capacity, impact resistance, friction resistance, smooth operation, long service life, higher running speed than ordinary vertical car, high processing accuracy, especially suitable for train wheels, bridge supports and other intermittent cutting, heavy cutting processing.

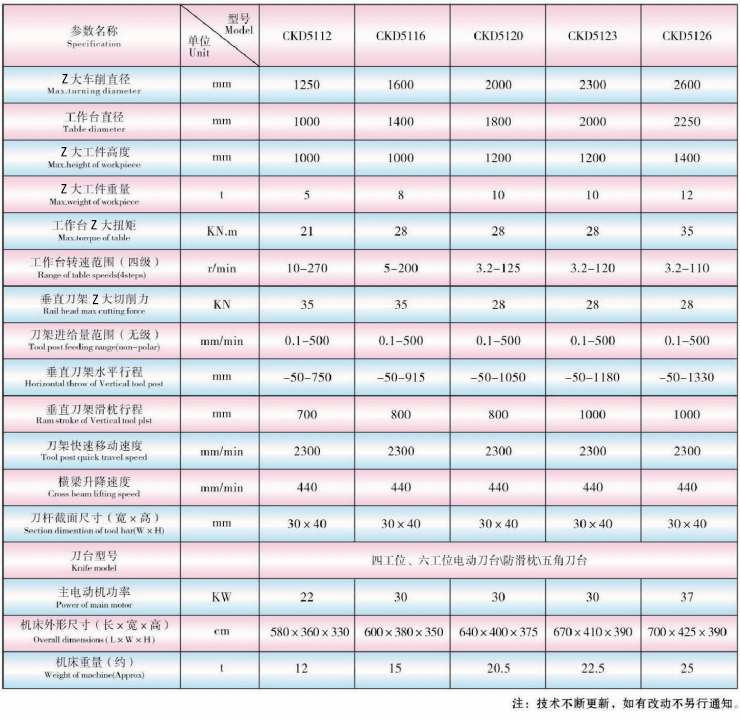

Technical parameters:
