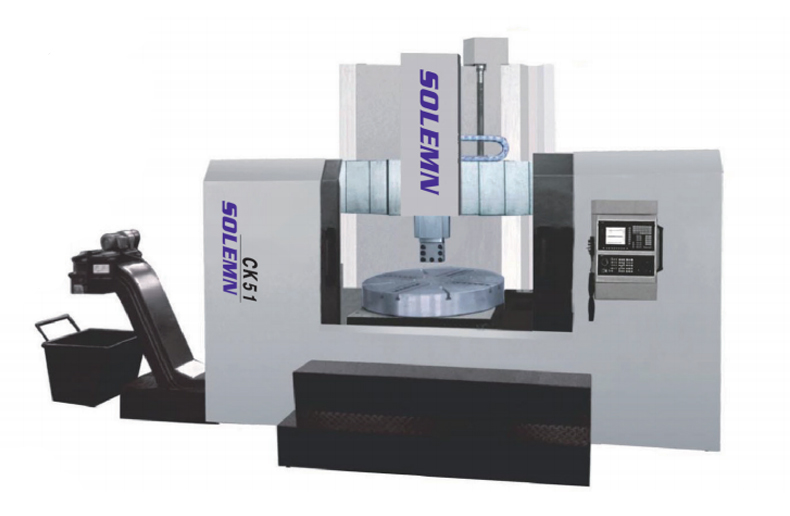

CK51 series single column CNC vertical lathe

Machine tool features:

1. The CNC vertical lathe is a piece of equipment with good performance, wide range of processes and high production efficiency. It is suitable for mechanical processing in various industries and can be used for internal and external cylindrical surfaces, internal and external conical surfaces, end faces, grooving, arcs and various Roughing and finishing of the surface of revolution. Spindle servo motor and spindle encoder can be equipped according to customer requirements, which can realize thread turning and constant linear speed cutting functions.

2. The worktable spindle adopts high-precision adjustable radial clearance double-row short cylindrical roller bearing centering. The constant current static pressure guide rail is used in the axial direction, so that the workbench has the characteristics of high rotation accuracy, large load-bearing capacity and small thermal deformation.

3. The base, workbench, bed body, beams and other large parts are made of gray cast iron with high strength and good wear resistance and processed to eliminate internal stress and not deform.

4. The guide rail surfaces of the bed body, beams, rams, etc. are quenched, ground, and ground manually, resulting in good contact surfaces and high precision. The crossbeam is hydraulically locked, allowing for a large cutting capacity without trembling.

5. The feed of the machine tool adopts AC servo motor and ball screw drive, and the cross beam is equipped with a stainless steel closed guard, which increases the safety and pleasantness of the machine tool.

6. The main drive of the machine tool is driven by an AC motor and uses a 16-stage spindle speed change mechanism to realize the speed range of the worktable.

7. The CNC system can be equipped with imported or domestic configurations according to user needs.

8. Standard configuration: Choose one of square ram and pentagonal knife table. Optional configuration: semi-enclosed shell of electric knife table, cooling and slaughtering device, four-speed stepless speed regulation.

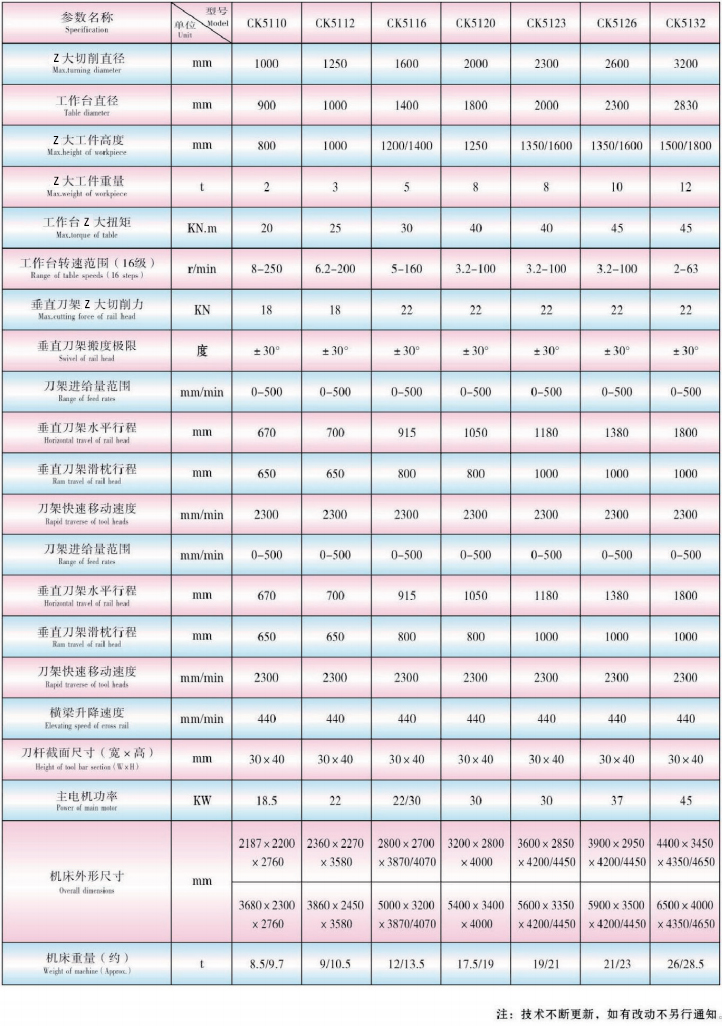

Technical Parameters:
